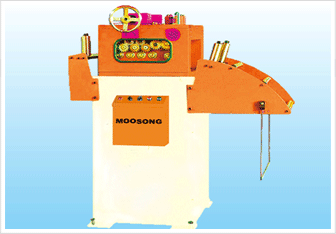

9 Levelling roll |
|
Inverter driven |
|
Touch type loop control |
|
 |
It has a perfect levelling capability.
Even
an unskilled worker can adjust the levelling.
Every
product is of modular type, and it is possible to select various types
depending on how thick the material is. |
 |
| |
Coil width |
Levelling
Roll Quantity |
Coil Thickness |
Levelling Roll
Section Area |
Feeding Speed |
Motor |
Pinch Roll
Switch Type |
| MSL-20S |
200㎜ |
7(9) |
0.3~3.2㎜ |
220㎜ |
18m/min |
0.75~1.5 (kw*4p) |
Air Cylinder |
| MSL-30S |
300㎜ |
320㎜ |
| MSL-40S |
400㎜ |
420㎜ |
| MSL-40M |
400㎜ |
7(9) |
0.8~4.5㎜ |
420㎜ |
18m/min |
1.5kw*4p |
Air Cylinder |
| MSL-50M |
500㎜ |
520㎜ |
| MSL-60M |
600㎜ |
620㎜ |
2.2kw*4p |
| MSL-70M |
700㎜ |
720㎜ |
| MSL-80M |
800㎜ |
820㎜ |
| MSL-40H |
400㎜ |
7(9) |
0.8~6.0㎜ |
420㎜ |
18m/min |
2.2kw*4p |
Air Cylinder |
| MSL-50H |
500㎜ |
520㎜ |
| MSL-60H |
600㎜ |
620㎜ |
3.7kw*4p |
| MSL-70H |
700㎜ |
720㎜ |
| MSL-80H |
800㎜ |
820㎜ |
|
| ※ It will be different or change all design or
specs to improve quality. |
