 Uncoiler
extension & reduction (Hyd' Cylinder) |
| Remote
control box |
| Coil
pusher (Air Cylinder) |
| Accuracy
in feeding ±5/100 |
| Coil
guide (Air Cylinder) |
| Coil
insert device (Hyd' Cylinder) |
| Pass
line auto type (Motor attachment) |
| Snub
device |
| Levelling
auto type (Motor attachment) |
| Touch
screen type |
| Open
type (Maunal, Easy to clean roll) |
| Inverter
driven |
|
 |
 |
| Coil
car |
| 2
Step pitch feeding |
| Urethane
roller |
| Feeder
master |
|
 |
 |
| (Tensile Strength 40kg/㎟) |
| |
MSLF-40H |
MSLF-50H |
MSLF-60H |
MSLF-70H |
MSLF-80H |
MSLF-90H |
MSLF-100H |
| Roll Length |
420mm |
520mm |
620mm |
720mm |
820mm |
920mm |
1020mm |
| Coil Width |
50~400mm |
50~500mm |
50~600mm |
50~700mm |
50~800mm |
50~900mm |
50~1000mm |
| Coil Thickness |
Min 0.8 ~ Max 6.0mm |
| Feeding Length |
Max : 9999.9mm (999.99mm) |
Servo Motor
|
5kw |
7kw |
Releasing
|
AIR CYLINDER |
Capacity
Width/Thick'
|
400w/2.3t |
500w/2.3t |
600w/2.3t |
700w/2.3t |
800w/2.3t |
900w/2.3t |
900w/2.3t |
| 400w/3.2t |
500w/3.2t |
600w/3.2t |
650w/3.2t |
710w/3.2t |
710w/3.2t |
710w/3.2t |
| 360w/4.5t |
360w/4.5t |
360w/4.5t |
360w/4.5t |
360w/4.5t |
360w/4.5t |
360w/4.5t |
| 200w/6.0t |
200w/6.0t |
200w/6.0t |
200w/6.0t |
200w/6.0t |
200w/6.0t |
200w/6.0t |
| Coil Weight |
3000kg |
5000kg |
|
| ※ It will be different or change all design or
specs to improve quality. |
 |
Accurate movement is ensured with the use of the high-performance ac servo motor and it is easy to control.
The compact machine enables installation in the confined space.
It is available in the touch screen type and PLC type and easy to control and maintain.
The feed roll and the work roll move together for ideal release.
No tool is needed to pressurize the feed roll as the air cylinder operates as an air regulator.

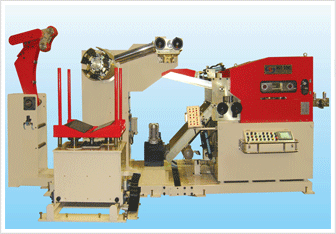

It is the new type NC LEVELLER FEEDER which is user-friendly for excellent maneuverability and safety.
The leveller is of the manual open type, so it is easy to clean the roll.
It is easy to adjust the pass line.
It is easy to control the leveller roll with the electronic switch.
It is easy to feed the coil through the input hole using th switch.
Special specification : Can manufacture the coil with width 1000 or more
|
